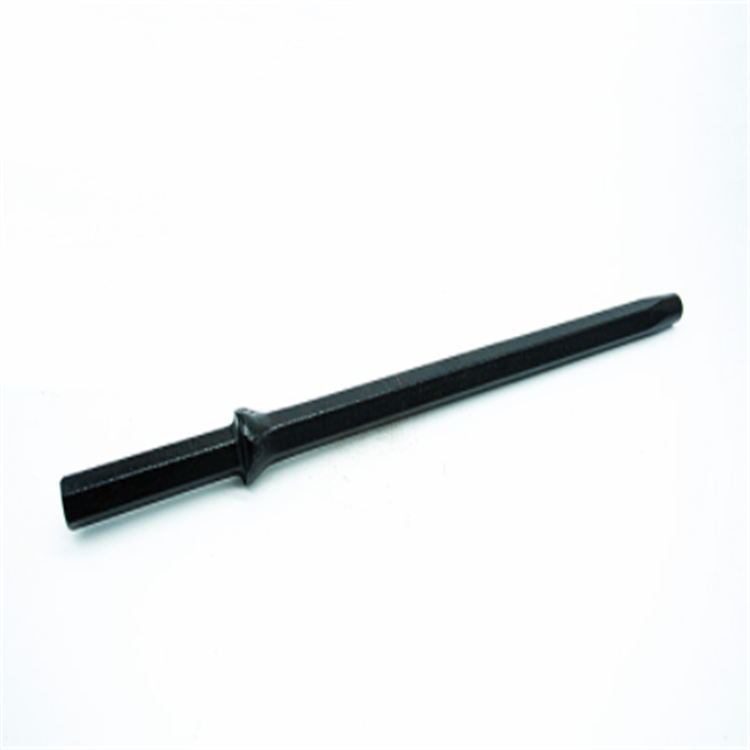

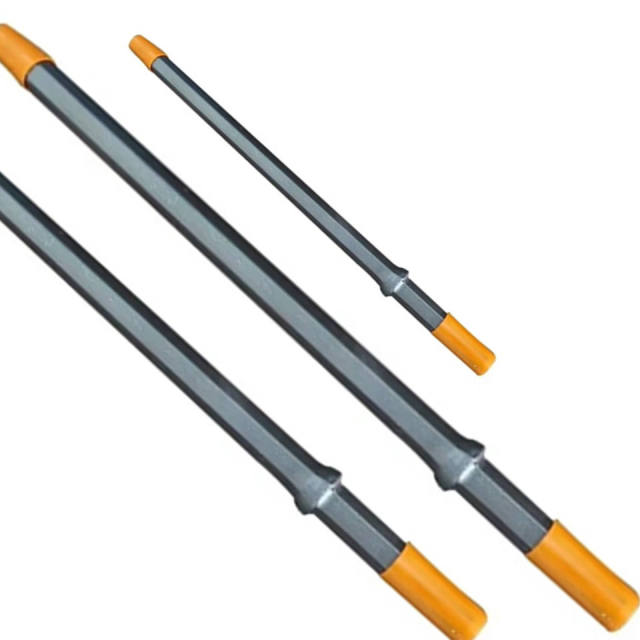

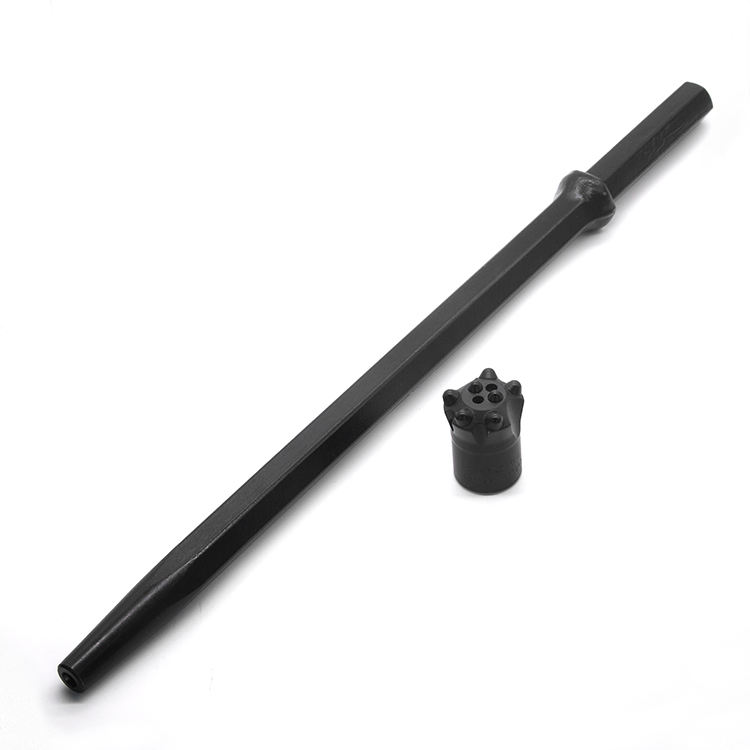

Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drillingere
Hex. 22mm Tapered Rod, 7 degree
Hex. 25mm Tapered rod, 7 degree
Materials :40SiMonCrNiMo
Diameter |
Weight (kg) |
P/N |
|
mm |
inch |
||
600 |
2" |
1.93 |
H22-7-0600 |
800 |
2'6" |
2.54 |
H22-7-0800 |
1000 |
3'3" |
3.15 |
H22-7-1000 |
1200 |
3'9" |
3.76 |
H22-7-1200 |
1500 |
4'11" |
4.68 |
H22-7-1500 |
1600 |
5'3" |
4.98 |
H22-7-1600 |
1800 |
5'9" |
5.59 |
H22-7-1800 |
2000 |
6'7" |
6.2 |
H22-7-2000 |
2200 |
7'2" |
6.81 |
H22-7-2200 |
2300 |
7'6" |
7.12 |
H22-7-2300 |
2400 |
7'9" |
7.42 |
H22-7-2400 |
2500 |
8'2" |
7.73 |
H22-7-2500 |
2600 |
8'8" |
8.03 |
H22-7-2600 |
3000 |
9'10" |
9.25 |
H22-7-3000 |
3500 |
11'5" |
10.78 |
H22-7-3500 |
4000 |
13'1" |
12.3 |
H22-7-4000 |
4500 |
14'8" |
13.83 |
H22-7-4500 |
5000 |
16'4" |
15.35 |
H22-7-5000 |
5500 |
17'1" |
16.88 |
H22-7-5500 |
6000 |
19'7" |
18.3 |
H22-7-6000 |
4000 |
13'1" |
16.1 |
H25-7-4000 |
4700 |
15'4" |
18.9 |
H25-7-4700 |
5000 |
16'4" |
22.1 |
H25-7-5000 |
5500 |
18'1" |
22.1 |
H25-7-5500 |
6000 |
19'7" |
24.1 |
H25-7-6000 |
Hex.22mm Tapered rod, carburized, 11 degree
Data:
Diameter |
Weight (kg) |
P/N |
|
mm |
inch |
||
610 |
2' |
2.2 |
H22-11-0610 |
1220 |
4' |
4.1 |
H22-11-1220 |
1830 |
6' |
5.9 |
H22-11-1830 |
2000 |
6'7'' |
6.4 |
H22-11-2000 |
2435 |
8' |
7.8 |
H22-11-2435 |
2600 |
8'8'' |
8.3 |
H22-11-2600 |
3200 |
10'6'' |
10.1 |
H22-11-3200 |
3655 |
1 2' |
11.5 |
H22-11-3655 |
4000 |
1 3'1'' |
12.6 |
H22-11-4000 |
4800 |
1 5'9'' |
14.9 |
H22-11-4800 |
5600 |
1 8'4'' |
17.4 |
H22-11-5600 |
6400 |
2 1' |
19.8 |
H22-11-6400 |
7200 |
2 3'6'' |
22.2 |
H22-11-7200 |
8000 |
2 6'2'' |
24.6 |
H22-11-8000 |
