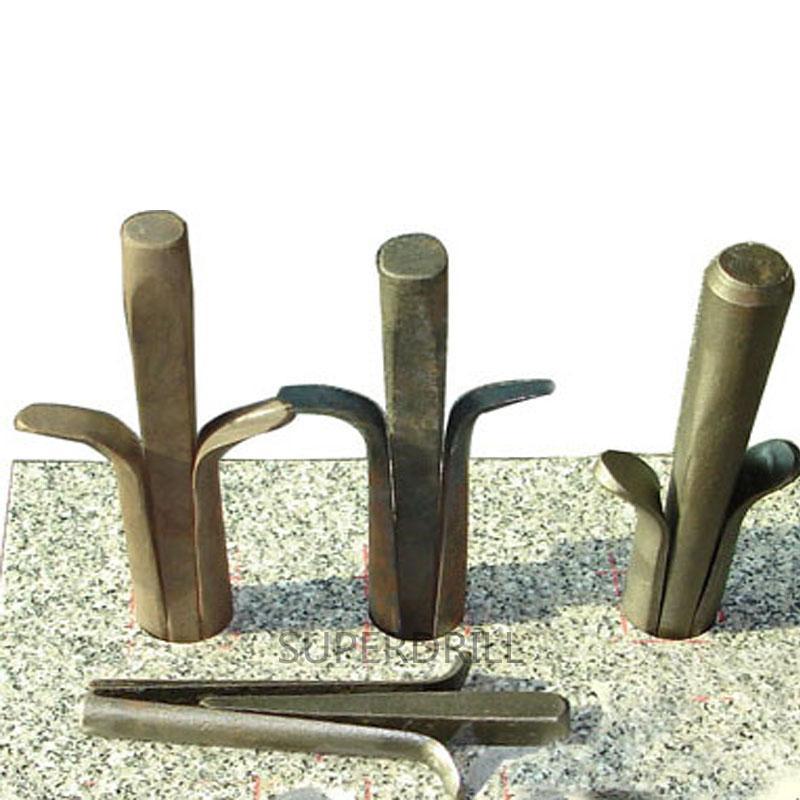

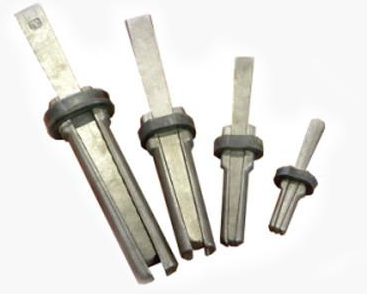

Stone Manual Wedge and Shims of Rock

Item No.: 00588
Shims and wedges are an essential tool used in conjunction with a hammer or compressor drilling machine bits to split stone blocks. They are designed to efficiently and effectively split hard stone, rock, granite, marble, and concrete into smaller pieces.
Sale: 0
Description Review
Description
**Product Description:**
Shims and wedges are an essential tool used in conjunction with a hammer or compressor drilling machine bits to split stone blocks. They are designed to efficiently and effectively split hard stone, rock, granite, marble, and concrete into smaller pieces.
Shims and wedgesShims and wedgesShims and wedges
**Instruction for Use:**
To use the shims and wedges, follow these simple steps:
1. First, drill dedicated holes in the stone block to clear out any residual powder.
2. Place the two big wedges, with their heads facing down, into the hole. Make sure they are aligned properly.
3. Then, place the small wedge on top of the two big wedges, in the middle of the hole.
4. Finally, use a hammer to beat the shims and wedges into place.
**Product Specifications:**
Specification:

Hand Held:
DIA(MM) LENGTH(MM)
14 125
16 125
24 190
32 270
38 325
38 600

For Air Pick:
DIA(MM) LENGTH(MM)
20 270
30 365
32 365
32 395
34 395
34 395
36 365
36 395
38 365
38 395
